Stud and Truss Profile Roll Forming Machine

Model NO. : NX80-300

Product Name : Stud and Truss Profile Roll Forming Machine

Coil Material Thickness : 0.3-0.8mm

Processing Material : Galvanized Steel

Roller Material : Cr12MOV;

Forming Speed : About 8-25m/Min

Main Motor Power : 5.5kw

Hydraulic Station Power : 2.2kw

Number of Work Stations : 12stations

Max. Roll Shaft of Diameter : 76mm

Overall L X W X H : 3.8m*1.2m*1.6m

Trademark : Nexus Machinery

Transport Package : 1.Control Box and Easy Damaged Parts:Protective PA

Specification : 60-27-28

Origin : Cangzhou

HS Code : 8455221000

Port : Tianjin, China

Supply Ability : 10

Payment Terms : L/C, T/T, Western Union, Money Gram

Warranty : 1 Year

Certification : CE, ISO9001

Customized : Customized

Condition : New

Control Type : Electric

Automatic Grade : Automatic

Contact Now

Product Description

Customer Question & Answer

Ask something for more details

(0)

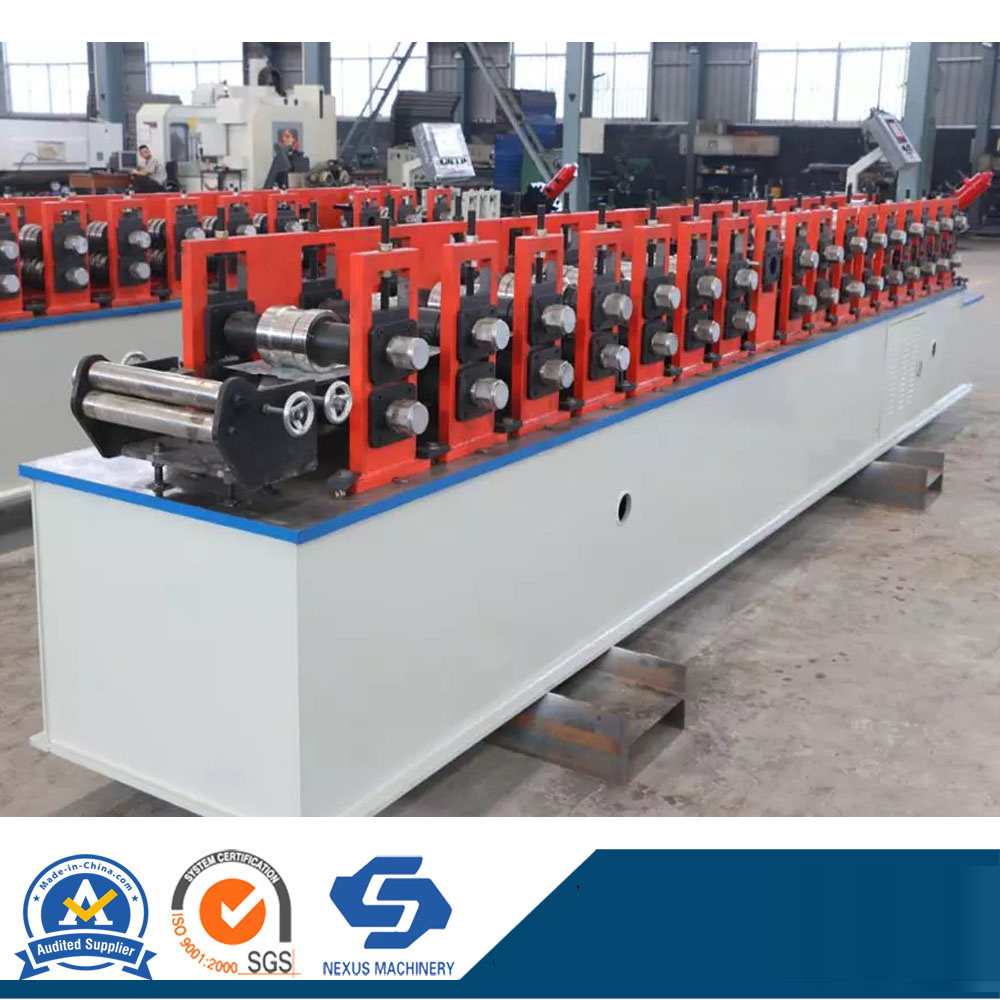

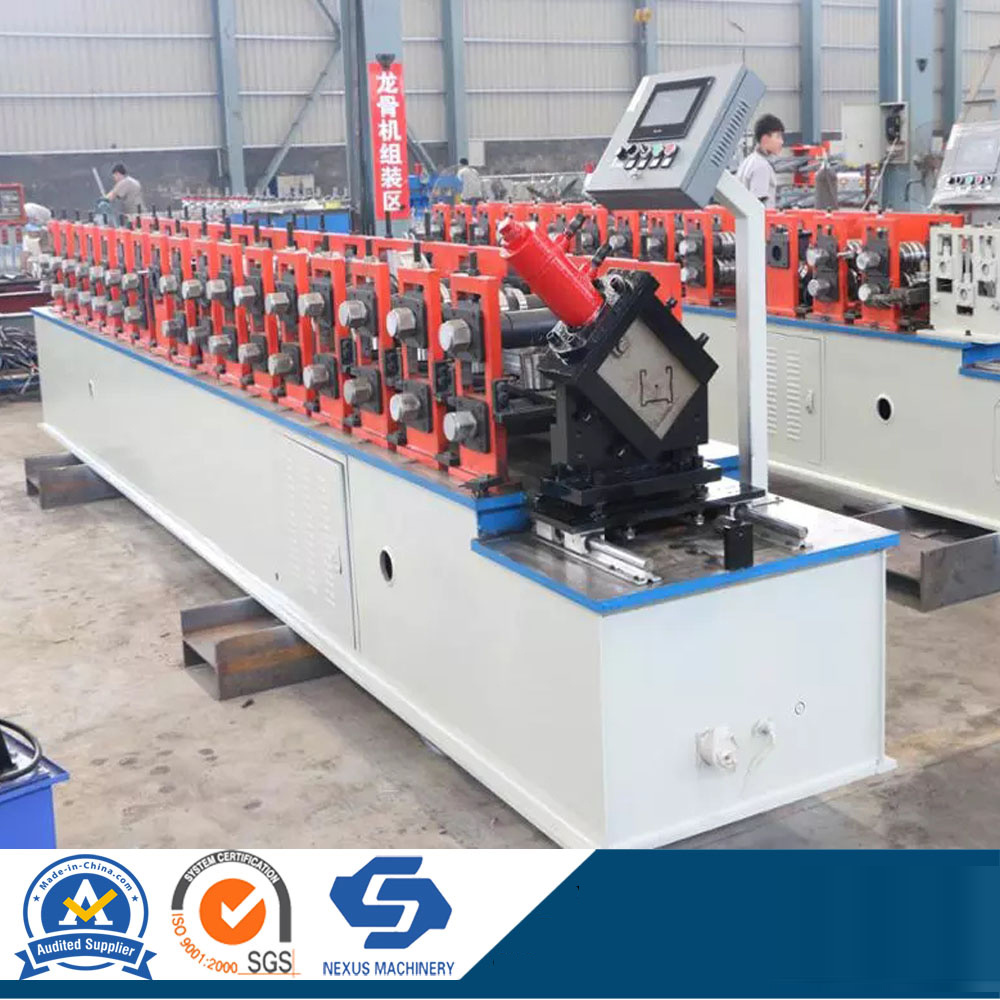

Stud And Truss Profile Roll Forming Machine

Stud And Truss Profile Roll Forming Machine offer builders a competitive alternative to traditional wood trusses.This machine provides significant improvements over other light gauge steel trusses currently available.Our machine could update with the fashio for providing new design increases material efficiency, ease of fabrication, simplicity of erection, and improved safety of material handling. No matter for running business or for big construction, this machine will be good helper for you

Technical Parameters:

No.	Stud and truss profile roll forming machine
1	Suitable material	PPGI/Aluminium sheet/galvanized sheet/various sheet plates
2	Thickness of coil sheet	0.3-0.8mm
3	Coil width	as customer's profile drawing requirement
4	Effective width	as customer's profile drawing requirement
5	Material of main frame	welded by 6mm steel plate
6	Diameter of Soild shaft	40mm, high grade 45# steel
7	Roller	Cr12
8	Thickness of middle plate	Memorial archway
9	Forming station	12 rows
10	Drive type	Gear
11	Power of main motor	5.5 kw, Lichao, Shanghai, with reducer
12	Servo motor	1.5KW
13	Forming speed	About 25-30m/min

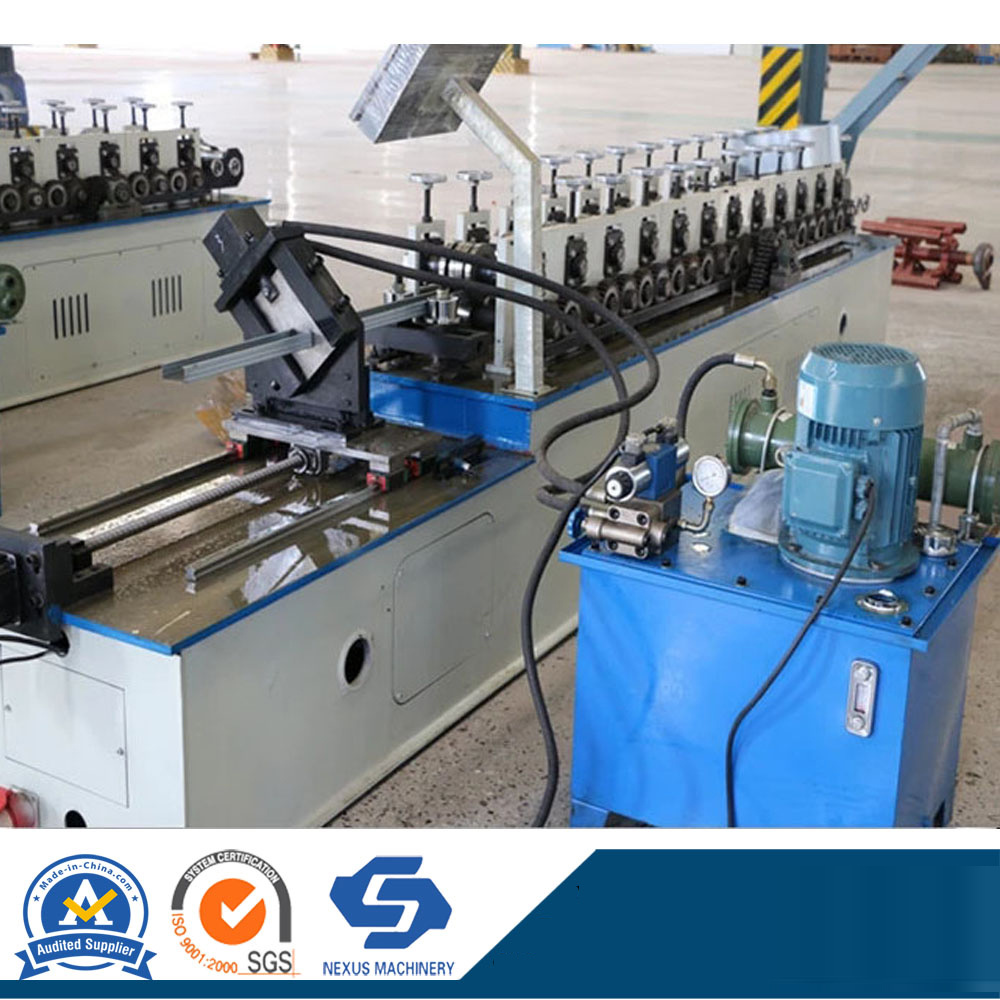

14	Hydraulic pump station	5.5 kw, 40# hydraulic oil
15	PLC	DELTA(TAIWAN)/Mitsubishi
16	Material of cutting blades	Cr 12, quenching 58-62ºC
17	Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm.
18	Switch	CHNT
19	Frequency changer	Delta,Taiwan

ABOUT US:
Stud and Truss Profile Roll Forming Machine

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
