Product Name : Metal Stud and Track Roll Forming Machine

Coil Material Thickness : 0.3-0.8mm

Processing Material : Galvanized Steel

Roller Material : Cr12MOV

Diameter of Shaft : 56mm

Forming Speed : 15-25m/Min

Package : One Full Set of 20 Feet Container

Trademark : Nexus Machinery

Transport Package : Control Box and Easy Damaged Parts: Protective PA

Specification : 60-27-28

Origin : Cangzhou

HS Code : 8455221000

Port : Tianjin, China

Supply Ability : 10 Sets/Month

Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram

Warranty : 1 Year

Certification : CE, RoHS, GS, ISO9001, SGS

Customized : Customized

Condition : New

Control Type : Electric

Automatic Grade : Automatic

Contact Now

Product Description

Customer Question & Answer
Ask something for more details

Metal Stud And Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine


Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine


Specifications

Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine

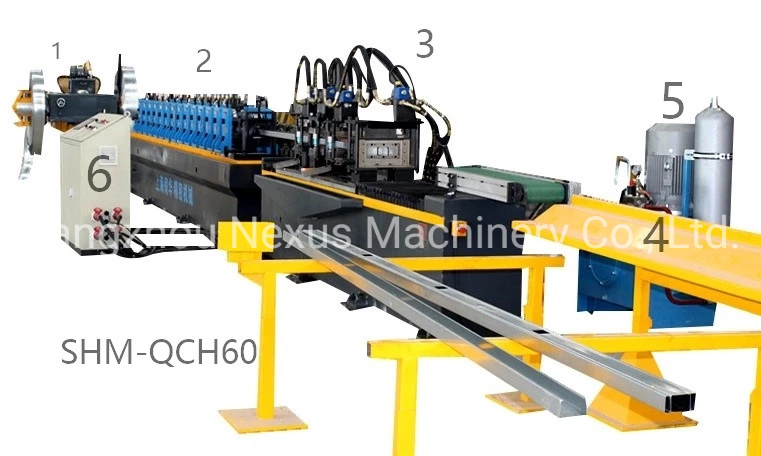

The product line include six parts

NO.ITEMAdvantage
1De-coiler

double-headed de-coilder in order to fast for strips coil

2Roll forming machine

solid box structure and high precision working table

for good shape purlin forming and longer machine life

3Cutting tableflying shear cutting system
4Hydraulic stationfast output product
5Electricity systemtouch screen show all function and easy control product line and easy maintenance
6Product transmissionoutput power stability
ThicknessMax1mm
Installation Size6.5M*0.9M*1.4M
Under Framesquare Pipe Welded,
Working Table25mm Steel Plate with precision processing
Feeding Systemgalvanized roller flatting with adjustment
Gateway Thickness35-40mm
Gateway Height383mm
Double Bearing Inside with inject oil, Gateway fixed on the platform
Roller Station14 Steps
Roller Shaft60mm with key-way
Driving Motor5.5KW
BrandLichao
Quantity1 Unit
Cutting System Structure with 23mm steel plate
Cutting MoldCr12Mov
Hydraulic Pump Station5.5KW
Transmission Chain1.2 Inch.
Production Speed0-15m/min


Photo for Metal Stud And Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine
Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine
Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine

Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine


Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine
Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine



Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine

ABOUT US:


Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine

More Products for Your Choose:
Metal Stud and Track Roll Forming Machine C Purline Roll Forming Machine C Channel Roll Forming Machine Roll Forming Machine



FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
