10T Automatic Hydraulic Decoiler Machine Uncoiling Machine10T Automatic Hydraulic Decoiler Machine Uncoiling Machine is mostly used for metal roll forming production line or metal sheet cutting line. The fuction of hydraulic decoiler machine is save labor and make the work more efficiency. For this decoiler machine, it can support 10 tons metal coil, max width is 1250mm. Usually most of decoilers can be only suitable for 1250mm width. We adopt 4KW electric motor to rotate the shaft, it can decoil automatically. In a certain, it speed up the whole production because passive decoiler need to be pulled metal coils by roll forming machine or cutting machine. Apparently, it is low speed and dangerous.
1. Main specification: | Capacity | 5 tons/8ton/10 tons |
| Feeding width | MAX 1250mm |
| Expanding range | 460-520mm |
| Electricity Supply | 380V 50HZ, 3PHASES or Customized |
| Motor Power | 7.5 KW |
| Hydraulic Station | 3 KW |
| Hydraulic Pressure | 16Mpa |
| Weight of Machine | 3 tons |
| No. | Product Name | QTY |
| 1 | 10T Automatic Hydraulic Decoiler Machine Uncoiling Machine | 1 |
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- Low noise with high efficiency.

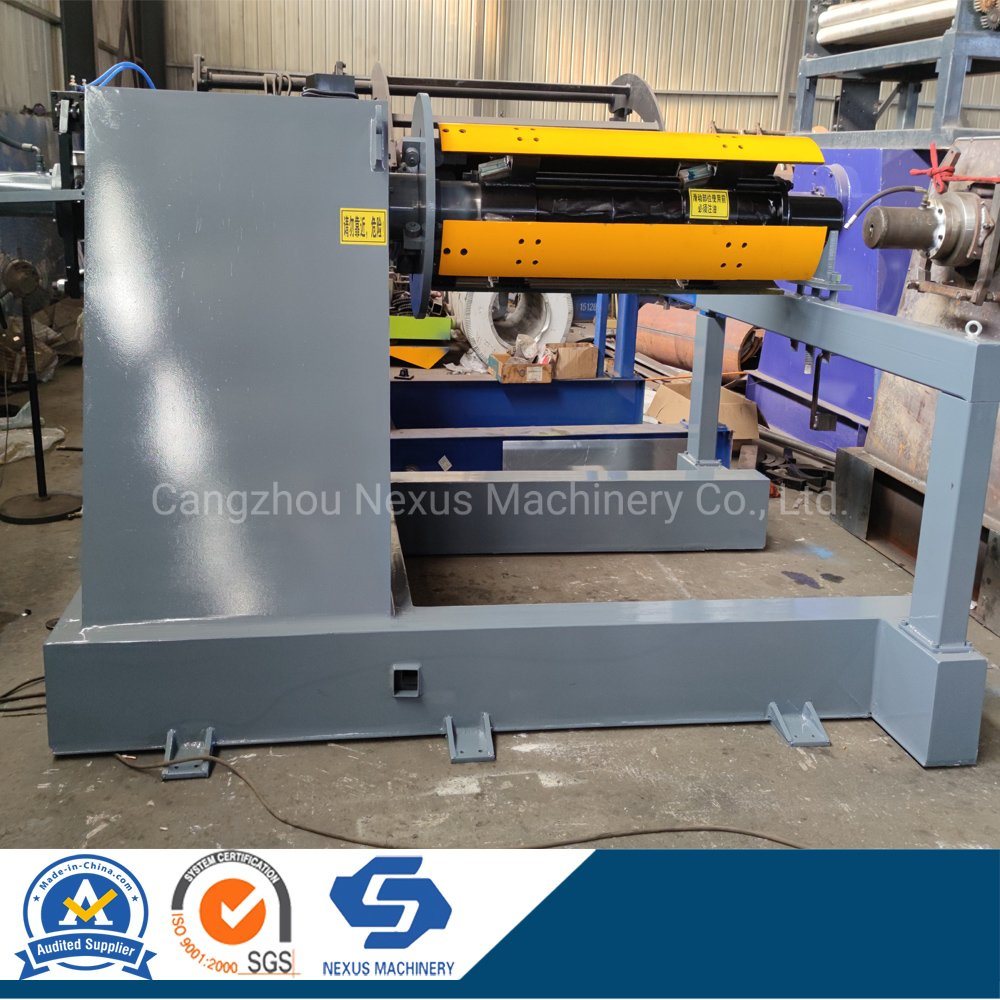

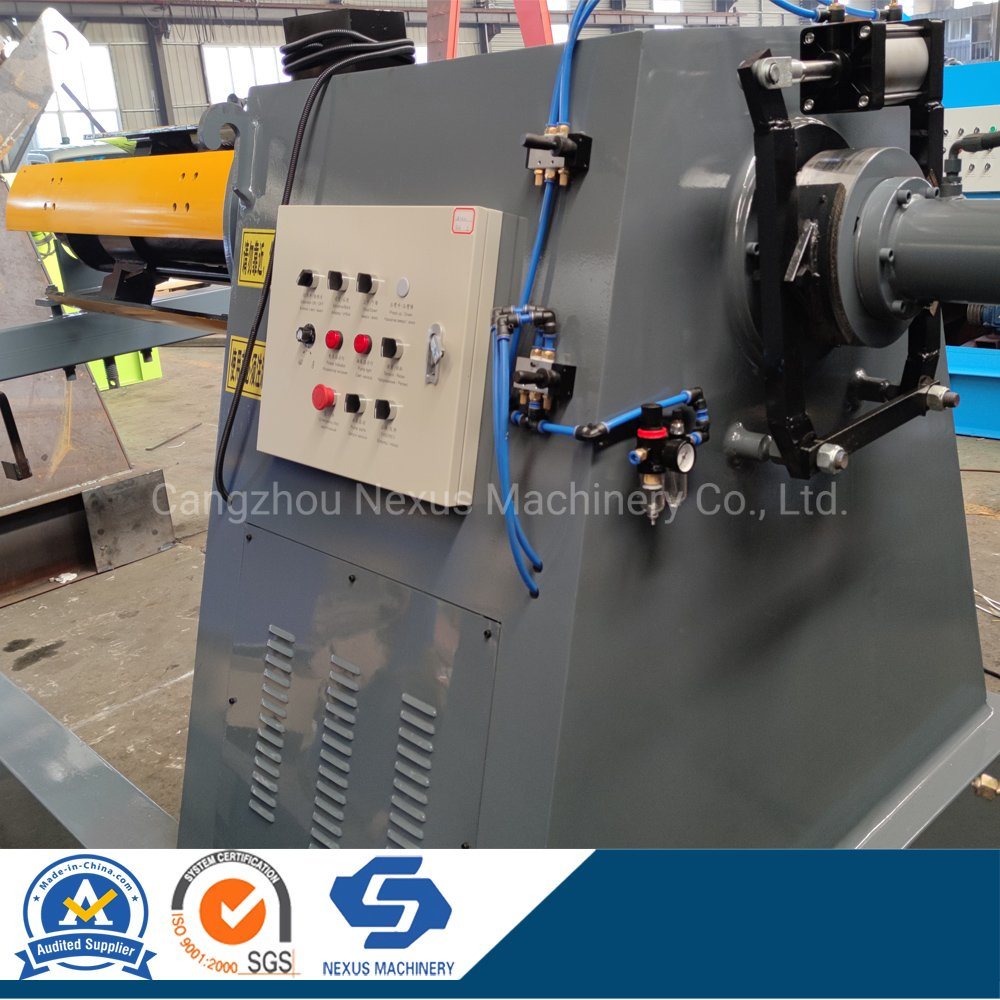

4. Photos of 10T Automatic Hydraulic Decoiler Machine Uncoiling Machine for Reference:
ABOUT US:Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
